flushing cistern GD 2
with small maintenance access

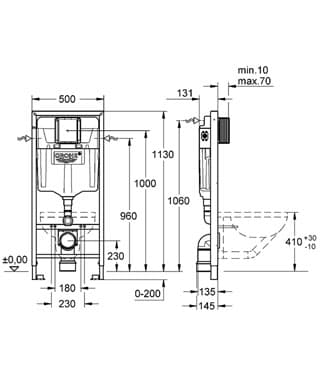

1.13 m installation height
for on-the-wall installations or studded walls
powder coated steel frame, self-supporting
for dry-cladding, completely pre-assembled
with fixed connections
for single or rail installation
quick adjustment, lockable
fixing material
TÜV approved
2 WC fixing bolts
fixing device for ceramic
distance of fixing bolts 180/230 mm
outlet bend ø 80 mm, depth adjustable
reducer Ø 80/100 mm
inlet and outlet connecting set
flushing cistern GD 2, 4.5 - 9 l
pneumatic discharge valve offering
3 modes of operation: dual flush or
start/stop or non-interruptible
water supply from left/right or back
low noise (group I acc. to
German Noise Specification)
DIN approved
insulated against condensation
½" water supply connection including integrated
angle valve and push fit flexible hose union
no tools required for the installation
of the inspection shaft incl. protection
during construction phase,
for vertical or horizontal use
without accessories for on-the-wall installation
